Technical Data
Part No.: MODF0003
Material: CRS cold rolled steel, powder coated RAL 7035 Light Grey
Plastic parts: ABS LSZH, color black
Installation method: Floor-standing
Dimensions (WxDxH): 900 × 300 × 2200 mm
Capacity:
9 × Distribution subracks, each with 192 LC ports (total 1728 LC ports)
9 × Distribution & Splice subracks, each with 144 LC ports (total 1296 LC ports)
Cable entry: Top or bottom
Modular design: Racks can be mounted side by side or back to back
Accessories included:
Metal hose clip ×10 pcs
Nylon cable tie ×20 pcs
PE tube 5 m
Remark paper ×2 pcs
Expansion bolt ×4 pcs
Features
Integrated unit for fiber splicing, termination, and cable management
Secure enclosure protects sensitive fiber optic connections from damage
Modular construction: base rack, side overlength storage rack, side cable fixation rack, front left & right doors, side & back covers, cable fixation bars (8 pcs), and front bottom cable through
Easy access: front doors and side/back panels can be removed without special tools
Flexible cable entry from top or bottom
Distribution racks can be mounted side by side or back to back for scalable installations
Base racks and accessories are packed in carton boxes for safe transport
Application

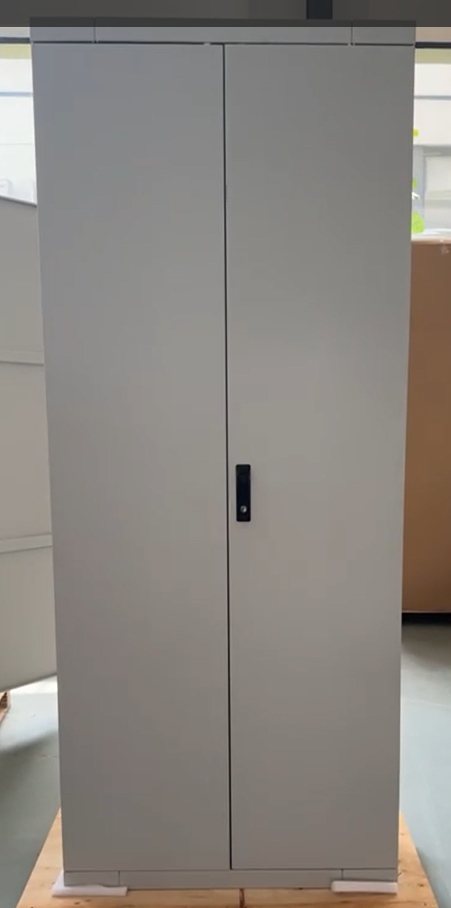

The CLOSED ODF RACK ST-RV-202 is designed as a central hub for fiber optic cable management in telecom central offices and large communication facilities. It streamlines the integration of splicing, termination, and cable connections, providing a secure and organized environment for high-density LC port deployments. Its modular, floor-standing design allows for flexible installation and expansion, while easy-access panels and included accessories facilitate efficient setup and maintenance. This solution is ideal for environments requiring reliable protection and management of sensitive fiber optic infrastructure.
