Cup 10 - protection cup for DB for splice 10mm

Manufacturer: Camozzi

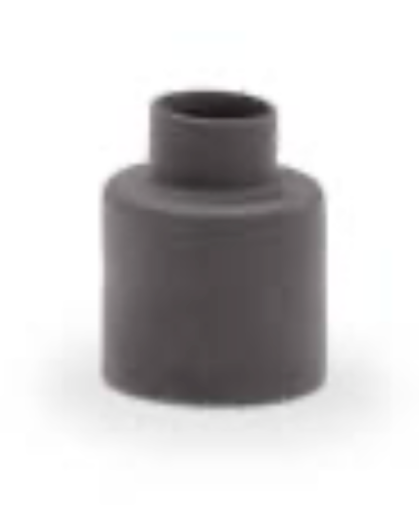

Cup 10 is a protective cap from the V4000 Series, designed to safeguard 10 mm microduct splice connectors in Direct Buried (DB) installations. It effectively blocks the ingress of water, soil, sand, and other contaminants during installation or maintenance.
SKU: FTL13CZ0040
Availability: Currently out of Stock

Technical Data

  • Model: 4708 (Cup 10)
  • Compatible Microduct Diameter: 10 mm
  • Material: Thermoplastic rubber
  • Color: Black
  • Length (L): 28 mm
  • Outer Diameter (F): 21.5 mm
  • Weight: 3 g
  • Packaging: 25 pieces per pack

Features

  • Designed for Direct Buried (DB) applications
  • Protects against water, dust, sand, and debris
  • Made from durable and flexible thermoplastic rubber
  • Quick and secure installation on the connector
  • Fully compatible with V4000 Series connectors for 10 mm microducts

Application

The Cup 10 protection cap is used to shield 10 mm microduct splice connectors during direct buried installations. It is especially recommended in harsh environments to prevent contamination during disconnection or maintenance, ensuring the long-term performance and reliability of the telecommunications infrastructure.

*
*
*
