Parameters:
cable diameter adapted to bus clamps
durable, light construction
all-dielectric
vibrant colors of tubes and fibers
can be tensioned

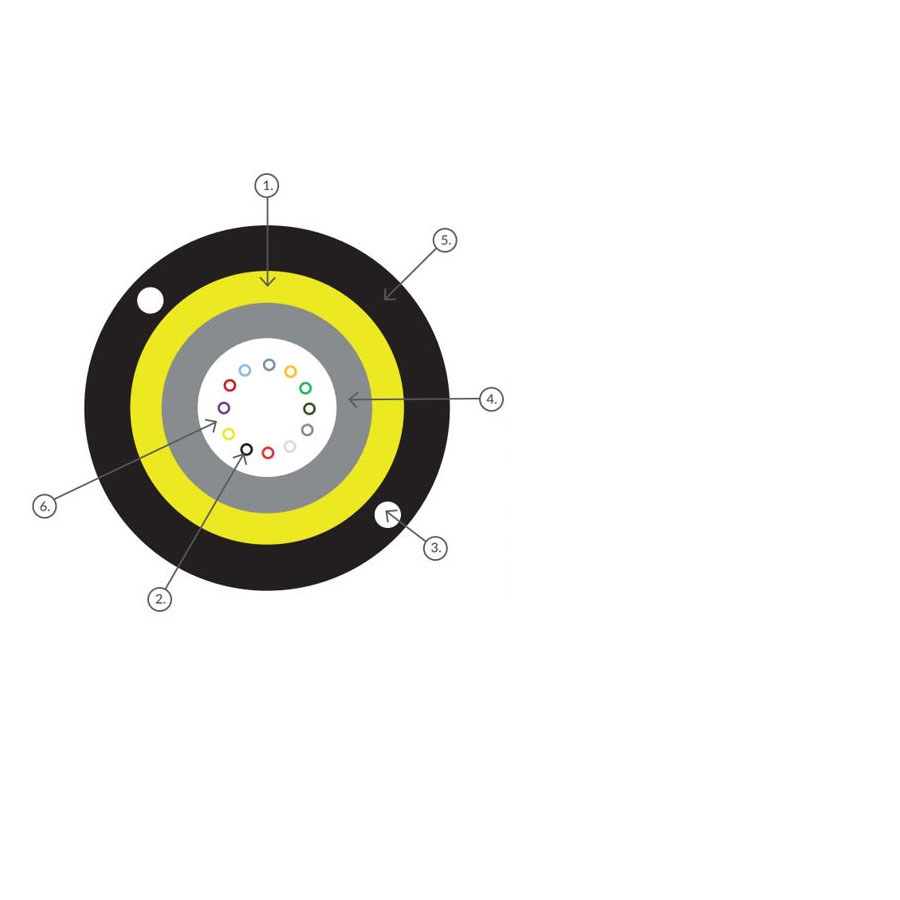

central tube design
all-dry
Use:
outdoor
self-supporting for aerial networks
can be tensioned in sewer
Additional technical parameters:
Maximum crushing force [N]: 1000 N
Standard length on a drum [m]: 2000 +/- 5%
Weight [kg/km]: 20 +/- 5%
Operating temperature: -40+70
Installation temperature: -20+60
Storage temperature: -40+70
Thickness of outer coating [mm]: 1.3 mm
Products specifications
|
Fiber type
|
G.657.A1 |
|
Pulling force [N]
|
1500 |
|
Outer shell
|
HDPE |
|
UV resistance
|
yes |
|
Diameter [mm]
|
5,2 |
|
Type
|
overhead |
|
Number of fibers
|
12 |
