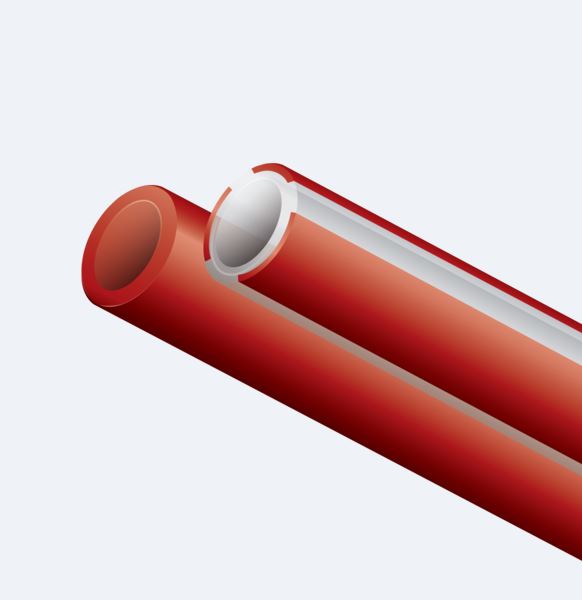

Dura-Line HDPE MicroDucts 14/10mm - Direct Buried, Silicore Lined, RAL Colors

The MicroDucts HDPE 14/10 mm is a versatile solution designed for establishing new direct buried pathways or as a subduct in existing lines. It features both smooth and ribbed inner lining options and is engineered to withstand impact for direct burial.
SKU: FMC15DL0008
Availability: Currently out of Stock
Price for 1 m
Technical Data:
Material: High-Density Polyethylene (HDPE)
Size: 14/10 mm (outer/inner diameter)
Pressure Resistance: Minimum 15 bar
Inner Lining: Silicore (permanently lubricated) for reduced friction (<0.1 coefficient)
Optional Feature: Anti-Static function to decrease static-induced friction during fiber installation
Color Options: 12 RAL colors with optional stripes, plus a natural color option

This MicroDuct features a permanently lubricated inner layer, Silicore, ensuring a lower inner coefficient of friction for maximum cable blowing length. It also includes an anti-static inner layer to reduce friction caused by static electricity during fibre installation. Available in 13 opaque RAL colours, it also comes in a transparent version with stripes of 13 opaque colours.

The MicroDucts HDPE 14/10 mm is ideal for creating new direct buried pathways or as a subduct in existing lines. It can be installed by pulling, blowing, or pushing in existing duct systems with the flexibility to accommodate single MicroDucts or bundles. It is also suitable for use in other DB bundles such as FuturePath HDPE and FuturePath Flex.
