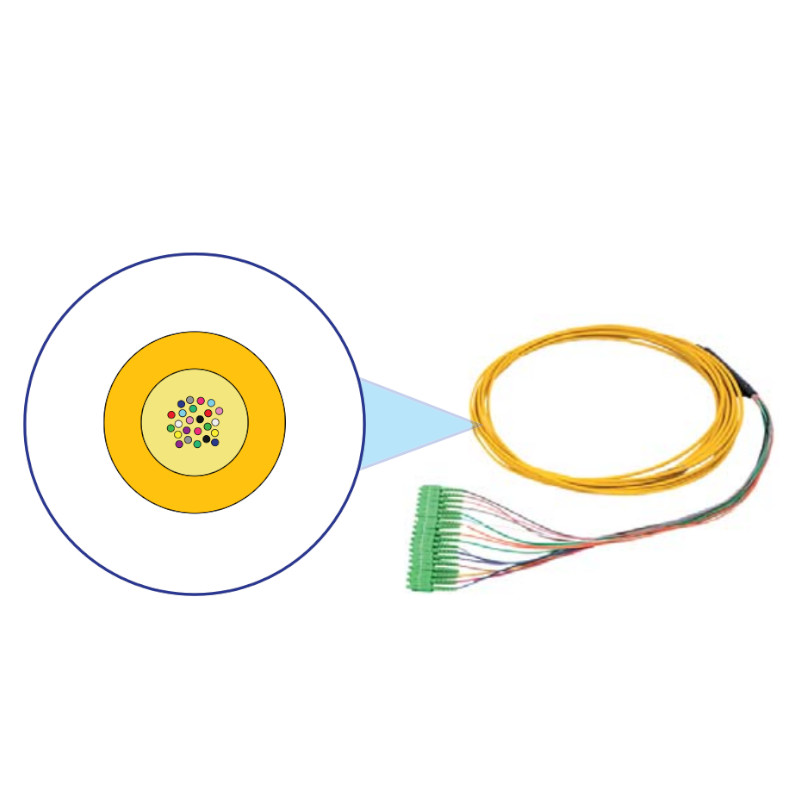

Parameters:
optimized for connections in multifamily residential units
delivered in factory-made sections finished with connectors on one side
made on a dry cable - easy installation
all-dielectric
Use:
indoor
installation in shafts, pipes, and cable trays
Additional technical parameters:
Tensioning force [N]: 500
Connector insertion loss [dB]: <0.3
Return loss [dB]: PC>55, APC>65
Installation temperature: 0~+40
Operating temperature: -20~+60
Storage temperature: -20~+60
Products specifications
|
Number of fibers
|
12 |
|
Outer shell
|
LSZH |
|
Connector type
|
SC/APC |
|
Diameter [mm]
|
4,3 |
|
Length [m]
|
20 |
|
Fiber type
|
G.657.A1 |
