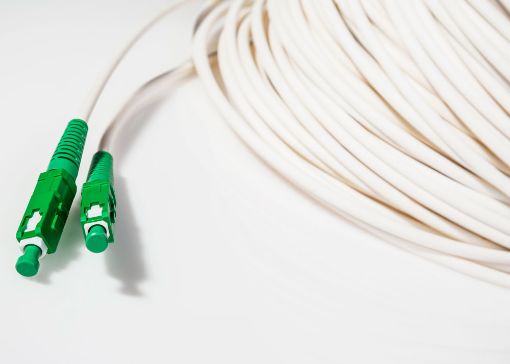

Patch cord B3ND 3.0mm simplex 9/125 SC APC-SC APC white 1m

Technical Data:

• Product Code: PTCH30-M-9-SCASCA-01-WHT-B3ND
• Weight: 0.02kg
• Number of Fibers: 1
• Fiber Type: G.657.B3
• Connector Type: SC/APC, single-mode
• Diameter: 3mm
• Length Options: Available in multiple lengths
• Pulling Force: 80N
• Return Loss: >60dB (APC)
• Insertion Loss: <0.3dB
• Operating Temperatures: -20°C to +40°C
• Installation Temperature: 0°C to +40°C
• Storage Temperature: -20°C to +40°C
• UV Resistance: No
• Color: White

Features:

• Equipped with SC/APC connectors for reliable connectivity.
• The ferrule is polished at an 8-degree angle to minimize return loss.
• Designed for a single fiber, ensuring straightforward and precise signal transmission.
• The patch cord boasts a robust pulling force without compromising the integrity of the optical fiber.
• Lightweight and compact for easy handling and installation.

Application:
This fiber optic patch cord is ideal for indoor applications, such as setting up drop-type in-building subscriber cables. It is perfect for use within multi-family housing units as well as for installations in individual customer apartments. The patch cord's compatibility with B3 fiber and its small diameter make it as manageable as twisted-pair cables, and it can be mounted directly on walls using standard mounting components.
