patchcord 3,0mm simplex 9/125 SC APC-SC APC 30m white B3ND

Manufacturer: Cellco

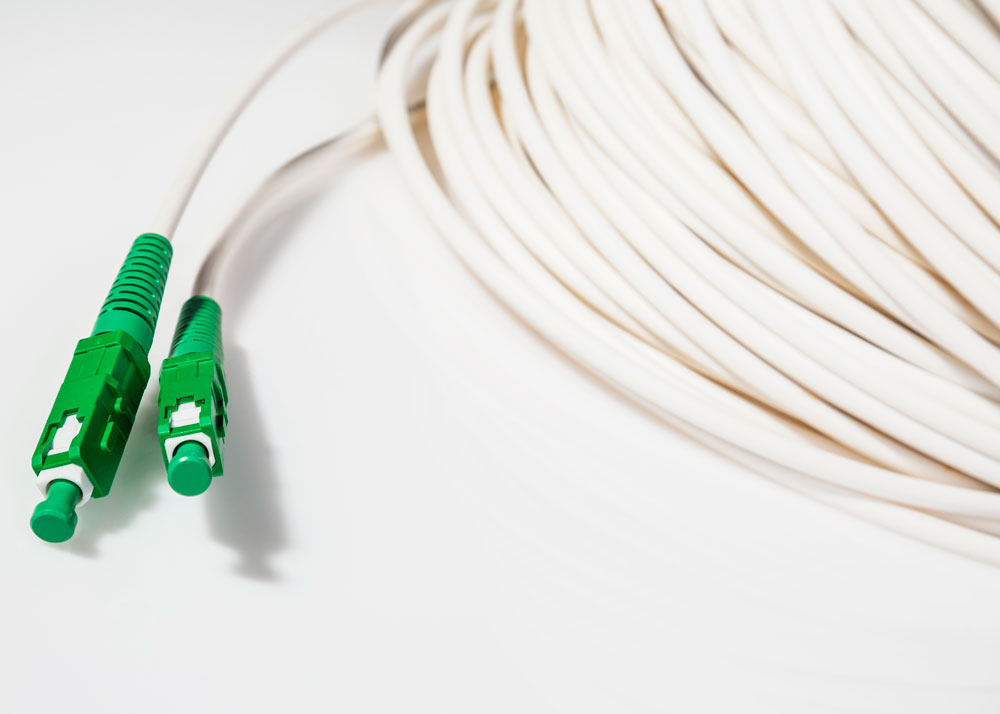

The Cellco24 fiber optic patch cord is a high-quality, simplex 9/125 SC APC-SC APC cable designed for reliable, high-performance connections in fiber optic networks. Suitable for indoor use, the patch cord with a white jacket has a length of 30 meters and a slender diameter of 3.0mm, ideal for in-building applications.
Availability: In stock
Warehouse: EU warehouse

Technical Data:

  • Product Code: PTCH30-M-9-SCASCA-30-WHT-B3ND
  • Weight: 0.281kg
  • Fiber Count: 1
  • Fiber Type: G.657.B3
  • Connector Type: SC/APC
  • Cable Diameter: 3mm
  • Cable Length: 30m
  • Ferrule Polishing Angle: 8 degrees
  • Pulling Force: 80N
  • Insertion Loss: <0.3dB
  • Return Loss: >60dB
  • Operating Temperature Range: -20°C to +40°C
  • Installation Temperature Range: 0°C to +40°C
  • Storage Temperature Range: -20°C to +40°C
  • UV Resistance: No
  • Color: White


  • Angled Physical Contact (APC) connectors with 8-degree ferrule polish for minimized return loss
  • Durable construction capable of withstanding up to 80N of pulling force
  • Low insertion loss (<0.3dB) ensuring minimal signal attenuation
  • High return loss (>60dB) for superior signal quality
  • Compatible with G.657.B3 fiber for versatile connections

Designed for indoor usage, this patch cord is perfect for setting up or expanding network infrastructure within single and multi-family residences. It is especially suited for:

  • Subscriber cable applications in residential buildings
  • Multi-dwelling unit installations and in-apartment network setups
  • Direct wall mounting with various mounting elements
  • Use with air-blown, home, or residence fiber optic systems
Products specifications
Number of fibers 1
Pulling force [N] 80
Connector type SC/APC - SC/APC, SC/APC
Diameter [mm] 3
Length [m] 30
Application internal
UV resistance no
Return loss [dB] >60
Precipitation losses [dB] <0,3
