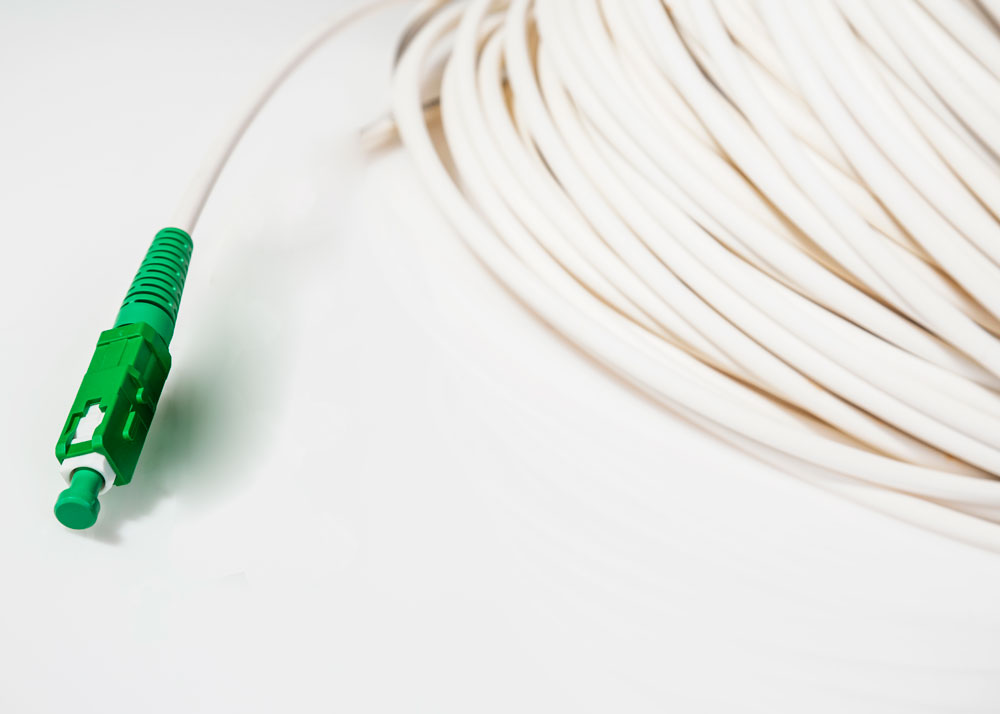

Pigtail (drop) VIPER 2J G.657.A1 1x SC APC white 40m

Technical Data:

• Code: PGTVIPER-02/01-SCA-40
• Fiber Type: G.657.A1
• Color: White
• Outer Shell: LSOH (Low Smoke Zero Halogen)
• Diameter: 3.1 x 2.1 mm (Flat)
• Number of Fibers: 2
• Connector Type: 1x SC/APC
• Length: 40 meters
• Weight: 0.36 kg for shipment, 9 kg/km (±10%)
• Installation Temperature Range: -20 to +60°C
• Operating Temperature Range: -30 to +60°C
• Storage Temperature Range: -30 to +60°C

Features:

• Outer Shell: LSOH material ensures safety within buildings
• Design: Completely dielectric and capable of being pulled through conduits
• Accessibility: Provides easy access to fibers for maintenance
• Condition: Arrives completely dry with ready-made sections and prefabricated joints on one side
• Cable Stripping: Tool-free stripping at any length for user convenience

Application:
This VIPER 2J Pigtail is specifically designed for in-building use as a drop subscriber cable, particularly suitable for multi-family residential structures. The cable's flat design permits straightforward installation on walls, through electrical installation pipes, or within cable shafts, providing a reliable and efficient connection to the fiber optic network.
