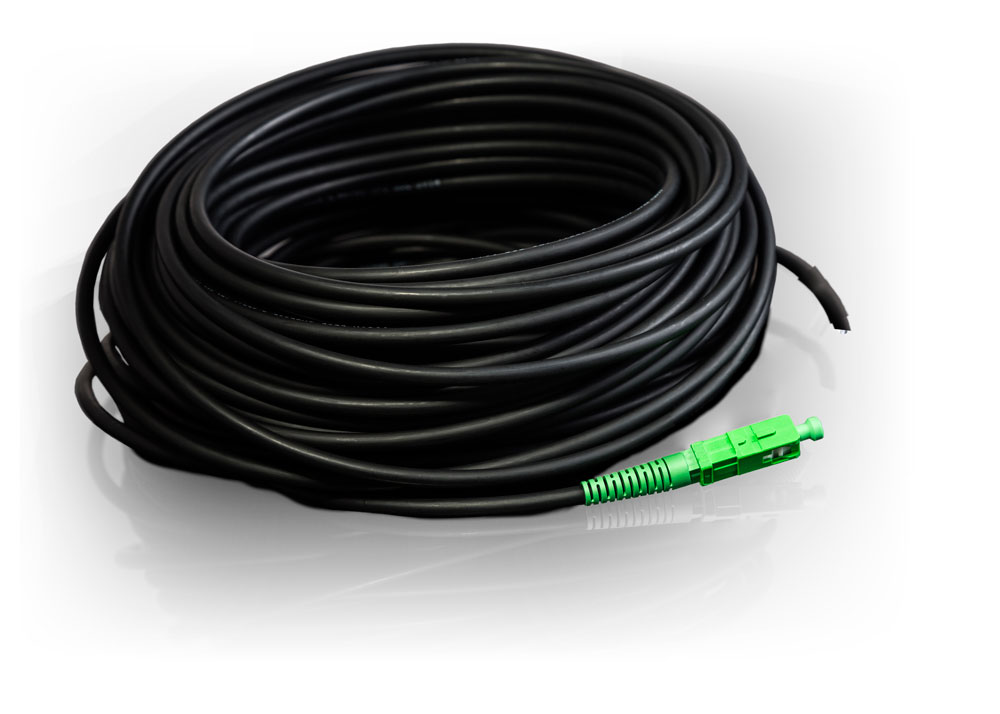

Pigtail SLIM 1J G.657.A1 1x SC APC 200m

Manufacturer: Cellco
Experience seamless connectivity with our SLIM Pigtail, featuring a robust SC APC connector on one end and a precision-cut bare fiber on the other. Designed for high performance and durability, this pigtail cable is crafted from top-tier G.657.A1 class fiber, with an optional upgrade to G.657B3 class for enhanced flexibility.
SKU: N-M-SLIM-PGT-02/02-SCA-200
Availability: Currently out of Stock

Technical Data:

  • Fiber Type: G.657.A1 (optional G.657B3 class)
  • Connector Type: SC APC
  • Cable Length: 200 meters
  • Cable Sheath: HDPE for superior strength and adaptability
  • Cable Diameter: Optimized for compatibility with subscriber holders

Features:

  • Rugged yet lightweight construction for hassle-free handling
  • Engineered for safe installation on structures
  • Completely dielectric build, eliminating electrical risks
  • Drawable design for easy deployment
  • Equipped with a heat-shrinkable cap for added protection
  • Dry construction to prevent moisture ingress

Application:
The SLIM Pigtail is ideal for use in external telecommunication networks, offering self-supporting functionality for overhead network installations and making it the perfect choice for connecting subscriber lines in challenging outdoor environments.

Products specifications
Number of fibers 2
Outer shell LSZH
Connector type SC/APC
Diameter [mm] 3
UV resistance yes
Fiber type G.657.A1
Length [m] 200
*
*
*
