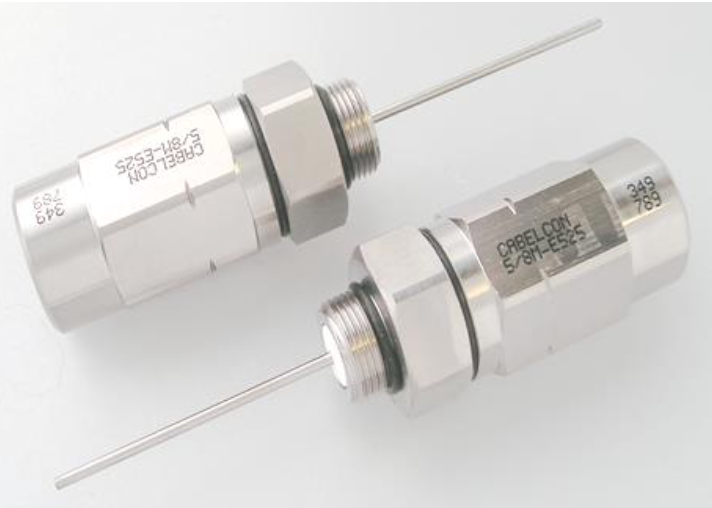

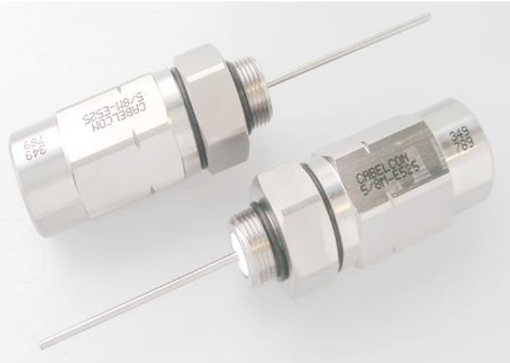

5/8M-TL525 PIN 1,8x47MM (57052500-01) - 5/8 Male Pin Connector

Manufacturer: Cabelcon
The 5/8M-TL525 Pin 1.8x47mm (57052500-01) is a 5/8 Male Pin Connector engineered to provide superior signal transmission with high screening attenuation, low insertion loss, and excellent return loss.
SKU: FTL08CA0023
Availability: Currently out of Stock
Technical Data:
The connector features an impedance of 75 ohms nominal, an amp rating of 15.0 A at a 10°C increase (calculated) and 21.2 A at a 20°C increase (measured). It operates within a temperature range of -40° to +85° C. The transfer impedance is classified as Class A++, with values less than 0.9 m?/m at 5-30MHz. The connector has also passed the sealing test with an IP X8 rating, ensuring its durability and reliability in diverse conditions.

Key features of this connector include high screening attenuation, exceptional return loss, and low insertion loss across multiple frequency ranges. It also boasts an insulation resistance of more than 200 G? at 500 VDC and a dielectric strength of more than 3.5 KV.

This connector is ideal for applications that require high-frequency signal transmission, such as in telecommunications, broadcasting, and networking. Its robust construction, high screening attenuation, and low insertion loss make it a reliable choice for demanding environments.
