ADSS Cable 48FO 048ZG4-EC530ADE A-DQ(T)2Y 8x6 E9U LT2.3 up to 200m

Technical Data:

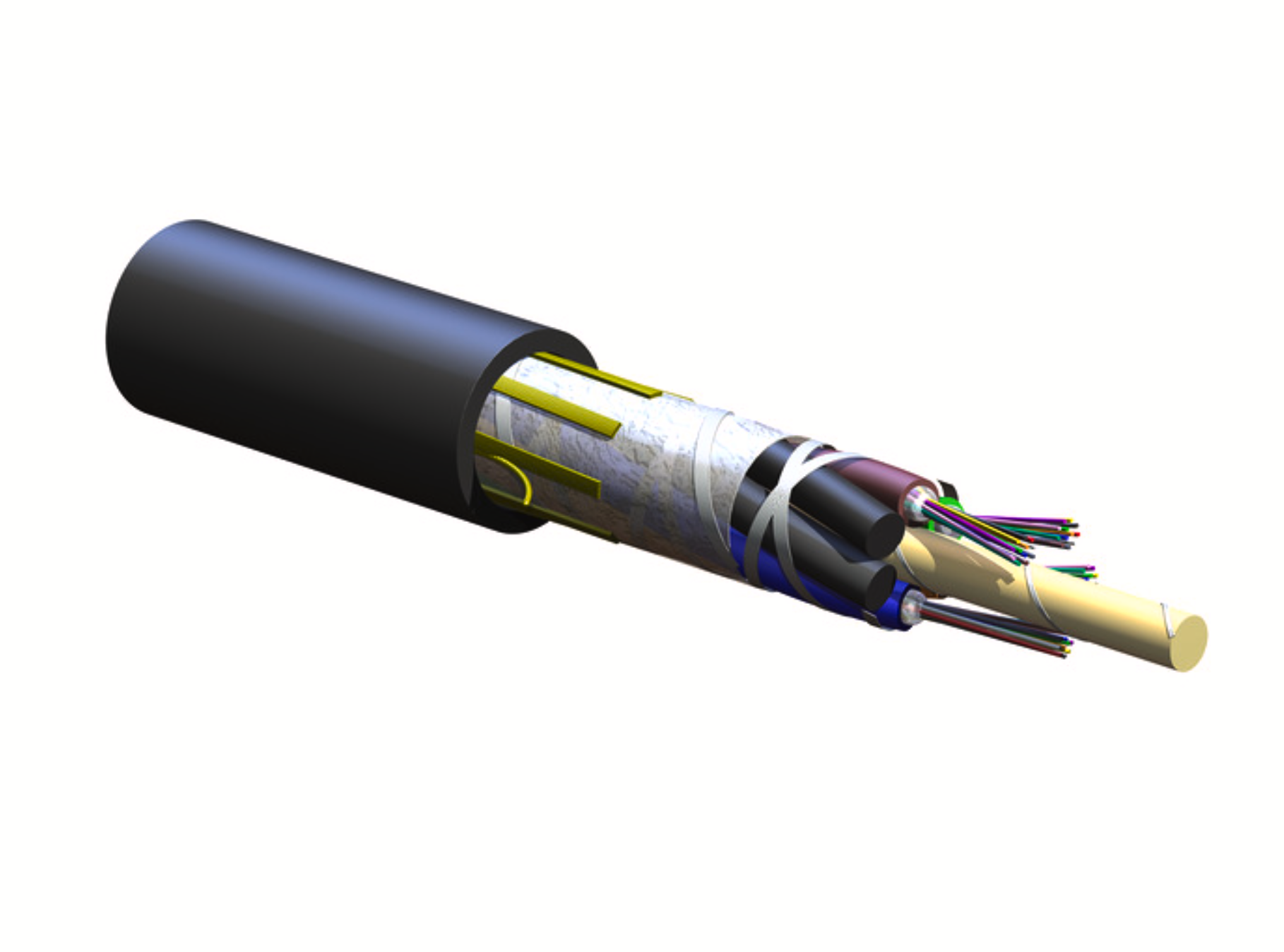

• Cable Type: ADSS Aramid Single Jacket Cable
• Span Length: Up to 200 meters
• Fiber Count: 48
• Fiber Type: SMF-28e+® Ultra ITU G652.D ITU G657.A1
• Temperature Range: -40°C to 70°C (operation), -40°C to -40°C (storage)
• Crush Resistance: 2000 N/10 cm
• Tensile Strength: 4240 N (long-term), 6880 N (short-term)
• Bend Radius: 162 mm (installation), 216 mm (operation)
• Outer Diameter: 10.8 mm
• Attenuation: 0.34 dB/km (maximum)
• Coating Diameter: 242 µm
• Weight: 88 kg/km

Features:

• All-dielectric self-supporting aerial cable
• Stable performance over a wide temperature range
• Compatible with any telecommunications-grade optical fiber
• Innovative waterblocking materials for efficient installation
• Easy, one-step installation using standard hardware and methods
• Dry cable core with swellable elements
• Non-metallic strength members for enhanced durability
• High-density polyethylene (HDPE) outer jacket for telecom applications

Applications:
The ADSS Aramid Single Jacket Cable is suitable for various telecommunications applications, including:

• Campus backbones
• Self-supporting installations where metallic messengers cannot be used
• Telecom infrastructure projects requiring long-distance connectivity
• Outdoor installations in different environmental conditions
• Reliable and high-performance fiber optic networks
