DUCT 24F – loose tube, 24fiber,12F/tube,G652D,1500N,d.8mm,ZTT

Manufacturer: ZTT
The A-DT.MT-24J.1.5KN-12F is a robust and efficient multitube duct cable designed to provide reliable and high-speed data transmission with its 24 fiber capacity, each tube housing 12 fibers of the G.652D type.
SKU: FMC01ZT0063
Availability: Currently out of Stock
Technical Data:
Fiber Count: 24 fibers
Fibers per Tube: 12
Cable Diameter: 8mm
Tensile Strength: 1,500N
Single-mode Fiber Type: G.652D
Jacket Material: High-Density Polyethylene (HDPE)

Equipped with a black HDPE jacket for durability and protection.

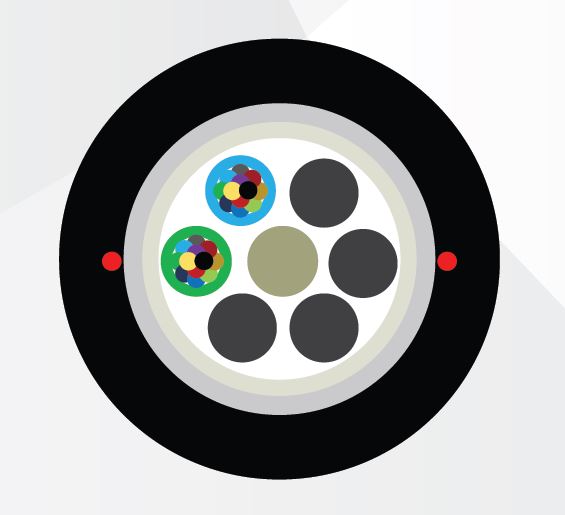

Multitube structure with hydrophobic gel for added fiber safety.
Resistance to ultraviolet (UV) light, water, and various chemical agents.
Reinforced with glass fibers and a central FRP rod for structural integrity.
Includes ripcords for easy access and handling.

This cable is well-suited for installation in duct systems, as well as for creating efficient distribution networks and connecting campus networks where multiple fibers are required. Its rugged design ensures it can handle the physical demands of these environments while maintaining signal integrity.
