Technical Data:
Bend radius: 155 mm
Height: 8.5 mm
Oversheath thickness: 0.75 mm
Width: 15.5 mm
MicroDuct size (OD/ID): 7/4 mm
Storage temperature: -40 to 70 ?
Installation temperature: -20 to 50 ?
Use/transport temperature: -40 to 70 ?
UV stability: up to 2 years
Maximum pulling force: 680 N (ISO 527-1,2)
Resistance of marking: IEC 60794-1-2, E2B nr2
Nominal weight (conduit): 77 kg/km
Total nominal weight (conduit + drum): 175 kg/km
Length on drum: 2000 m
Drum dimensions: 120 x 46.4 x 35.6 cm
Features:
Removable polyethylene oversheath for easy access
Multiple MicroDuct pathways (2 to 24 configurations)
Cost-effective installation
Pressure resistance minimum 15 bar
SILICORE® inner lining for low friction and maximum cable blowing length
Impact resistance and standard pulling strength
Easy-to-remove outer sheath
Optimal fill ratio (50%–75%)
Individual colored MicroDucts
Rip cord, internal ribs, smooth interior wall, pre-installed rope, locate wire options
Footage/meter markings for installation tracking
Applications:

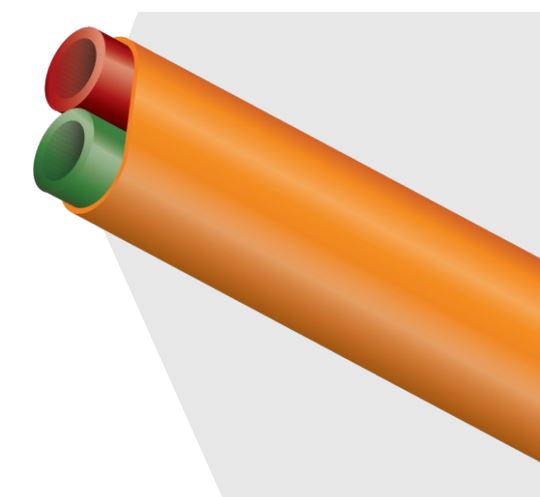

FuturePath HDPE 2x7/4 mm is ideal for direct-buried fiber optic and cable installations, telecommunications infrastructure, network expansion projects, and environments requiring multiple cable pathways in a single conduit. It is especially suited for installations where easy access to individual ducts is needed for maintenance or upgrades.
