DuraMulti 7x7/4 STANDARD – DB multiduct 7x7/4mm, orange jacket

Manufacturer: Dura-Line

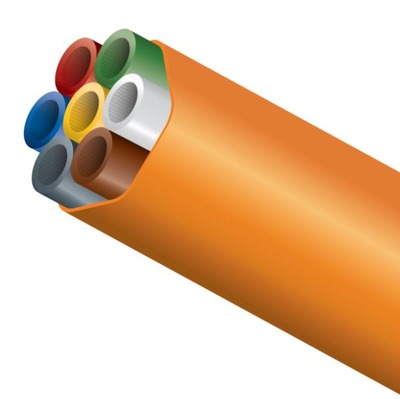

The DuraMulti DB 7x7/4 mm bundle is a robust solution designed for the protection of optical microcables. Comprising multiple microducts, this bundle is specially oversheathed with a high-density polyethylene foil for straightforward access and durability.
SKU: FTL15DL0001
Availability: Currently out of Stock
Price for 1 m
Technical Data:
Maximum cross-section dimension: 22.5 mm
Minimum cross-section dimension: 21 mm
Weight: 209 kg/km
Sheath thickness: 0.75 mm
Installation tensile force: max. 2,450 N
Operating temperatures: -40°C to +70°C
Installation temperatures: -10°C to +50°C
Minimum bending radius: 225 mm
Outdoor exposure limit in Central Europe: max. 12 months

Direct Burial (DB) classification for easy installation
UV stabilized for enhanced resistance to ultraviolet radiation
Antistatic properties due to lower electrical surface resistance
Compliance with key legislative requirements (EN ISO 9001, EN ISO 14001, OHSAS 18001, REACH, RoHS)
Customizable coloring options from a wide range of the RAL list
Personalized printing available along the bundle length for easy identification

This bundle is ideally suited for direct burial applications, providing a secure and protected pathway for optical microcables. Its construction ensures it can withstand a range of environmental conditions, making it perfect for outdoor use. The DuraMulti DB bundle is also suitable for a variety of installations thanks to its compliance with different standards and its adaptability to customer-specific requirements.
