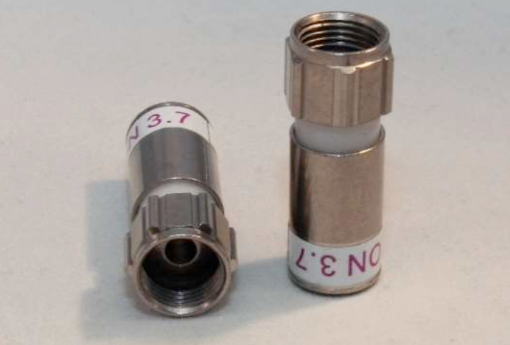

F-59-TD 3.7 TRUE DROP (99909916-02) - Compression Connector RG59

Manufacturer: Cabelcon
The F-59-TD 3.7 is a superior connector designed for use with Draka Coax AD 08S cable. It demonstrates exceptional performance across a broad frequency range from 0.3 to 3000 MHz.
SKU: FTL08CA0039
Availability: Currently out of Stock
Technical Data:
Frequency Range: 0.3 - 3000 MHz
Nominal Impedance: 75 Ohm
Transfer Impedance: <2.5 m?/m @ 5-30MHz
Screening Attenuation: >105 dB @ 30-1000MHz
Return Loss: Better than -32 dB @ 0.3 - 500 MHz
Operating Temperature: -40° to +100° C
Sealing Test: IP X8 (10 meter / 8 hours)

Advanced F male compression connector
Designed for use with Mini RG59 & RG6 cables
Exceptional transfer impedance and screening attenuation
Wide frequency range
High temperature resistance
Excellent sealing test results
Durable construction with Brass CuZn39Pb3 body parts, EPDM O-rings, and POM insulators.

The Cabelcon F-59-TD 3.7 TRUE DROP connector, with its superior technical specifications and durable construction, is ideal for applications that require consistent, high-quality signal transmission. Its wide frequency range and high-temperature resistance make it suitable for demanding environments. This connector is perfect for use in telecommunications, broadcasting, and other industries requiring reliable signal transmission. It is designed in accordance with the IEC 61169-24 (type F) standard.
