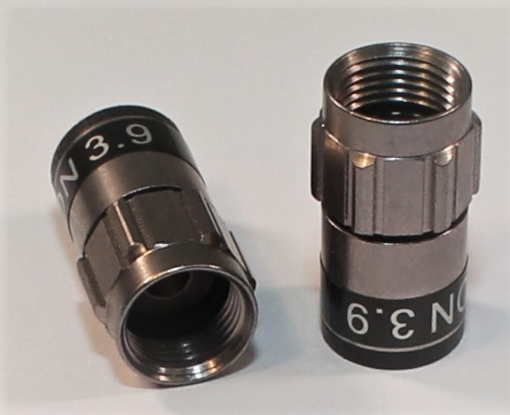

F-59-TD SELF INSTALL 3.9 NiTin TRUE DROP (99909621-05) - Connector RG59

Manufacturer: Cabelcon
The F-59-TD SELF INSTALL 3.9 NiTin connector is a highly efficient, easy-to-install connector designed for cable number 280034, offering exceptional performance over a wide range of frequencies.
SKU: FTL08CA0043
Availability: Currently out of Stock
Technical Data:
Frequency Range: 0.3 - 3000 MHz
Impedance: 75 Ohm (Nominal)
Transfer Impedance: Class A+ (Comet)
Screening Attenuation: Class A++ (Comet)
Operating Temperature: -40° to +70° C
Sealing Test: IP X8
Materials: Brass, POM body parts with Nitin plating; EPDM O-rings

Broadband performance with low insertion and return loss
Robust design with high intermodulation and tensile strength
Superior environmental sealing, rated at IP X8, suitable for challenging conditions
Easy installation process, designed to ensure a secure connection without requiring complex tools

This connector is ideal for various applications that require reliable signal transmission, such as telecommunications, satellite and cable TV, and broadband internet installations. It is also suitable for use in both indoor and outdoor settings due to its robust design and excellent environmental sealing.
