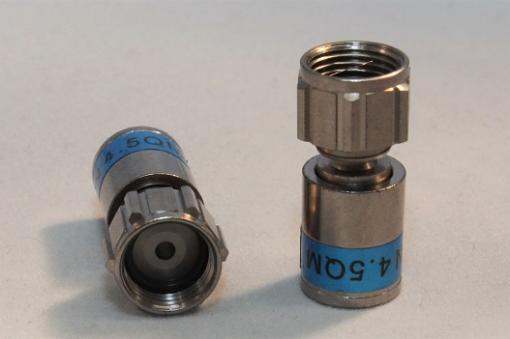

F-MINI-TD QM 4.5 SHORT TRUE DROP (99909909) - Connector Mini

Manufacturer: Cabelcon
The F-MINI-TD QM 4.5 SHORT TRUE DROP (99909909) is a high-performance connector specifically designed for Bedea, Telass BG 0,6_2,8C CUF-PVC cables, offering reliable connections for a wide range of frequencies.
SKU: FMC08CA0104
Availability: Currently out of Stock
Technical Data:
Frequency Range: 0.3 - 3000 MHz
Impedance: 75 Ohm
Return Loss: Better than -37 dB up to 500 MHz, -35 dB up to 860 MHz
Transfer Impedance: Class A, <5.0 m?/m @ 5-30MHz
Screening Attenuation: Class A, >85 dB @ 30-1000MHz
Operating Temperature: -40° to +70° C
Sealing Test: IP X8 rated

Robust brass construction with Nitin-6 plating for enhanced durability.
Design that meets IEC 61169-24 standard.
Excellent transfer impedance and screening attenuation performance for superior signal integrity.
Capable of withstanding challenging environmental conditions with its IP X8 sealing and wide operating temperature range.

Ideal for telecommunications and cable television industries where high-quality signal transmission is crucial. Suitable for both indoor and outdoor use, the F-MINI-TD QM 4.5 SHORT TRUE DROP connector ensures a secure and long-lasting connection for broadband communication networks.
