Technical Data:
Material: High Density Polyethylene (HDPE)
Size: 10/6 mm (outer/inner diameter)
Pressure Resistance: Minimum 15 bar
Inner Lining: Silicore®, permanently lubricated for reduced friction
Coefficient of Friction: Less than 0.1 for Silicore® lining
Color Options: Available in 12 opaque RAL colors, natural color, with or without identification stripes
Features:

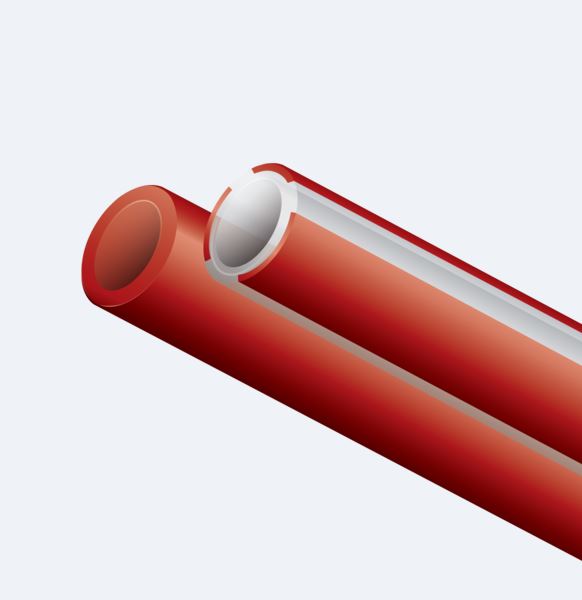

The MicroDucts HDPE 10/6 mm is designed with a co-extruded, Silicore, a permanently lubricated inner layer that provides a lower inner coefficient of friction for maximum cable blowing length. It also features an anti-static inner layer to minimize friction caused by static electricity build-up. The product is available in 13 opaque RAL colours per IEC 304, or colourless with stripes of 13 opaque colours. Other highlights include improved impact and compression resistance, and high-quality materials formulated for long life expectancy.
Applications:
The MicroDucts HDPE 10/6 mm is suitable for creating new direct buried pathways or for placing as a subduct in existing lines. It can be installed by pulling, blowing, or pushing in existing duct systems, accommodating single MicroDucts or bundles. It may also be used in other DB bundles such as FuturePath HDPE and FuturePath Flex.
