Technical Data:
Material: High-Density Polyethylene (HDPE)
Size: 7/4 mm (outer/inner diameter)
Pressure Resistance: Minimum 15 bar
Inner Lining: Silicore®, with a low friction coefficient (<0.1)
Colours: 12 standard opaque RAL colours, natural colour, with or without identification stripes
Markings: Footage/Meter
Features:

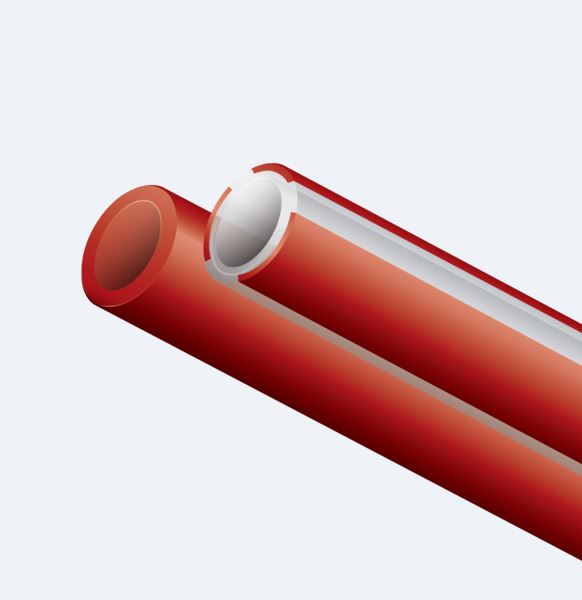

The MicroDucts HDPE 7/4 mm is designed with a co-extruded, permanently lubricated inner layer known as Silicore, reducing friction for maximum cable blowing length. It is available in both smooth and ribbed inner lining options, and has an anti-static inner layer to decrease friction caused by static electricity build-up. The product also features improved impact and compression resistance for DB products. It is available in 13 opaque RAL colours according to IEC 304, and in colourless with stripes of 13 opaque colours.
Applications:
The MicroDucts HDPE 7/4 mm is suitable for creating new direct buried pathways and for placing as a subduct in existing lines. It can be installed by pulling, blowing, or pushing in existing duct systems, accommodating single MicroDucts or bundles. It can be used in other DB bundles such as FuturePath HDPE and FuturePath Flex.
