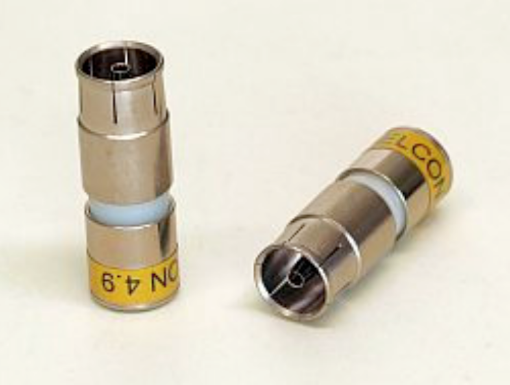

IECF-56-CX3 4.9 (99909494-01) - IEC Compression Connector RG6

Manufacturer: Cabelcon
The Coaxial Cable Connector is designed for use with the Draka Coax 10 AD 10 S cable, offering a frequency range of 0.3 - 3000 MHz and an impedance of 75 Ω. It is suitable for various applications due to its high shielding effectiveness and low insertion loss.
SKU: FTL08CA0052
Availability: Currently out of Stock
Technical Data:
Amp. Rating: 3 A
Transfer Impedance (CoMeT): 6,0 m?/m @ 5-30MHz, 0,2 m?/con. @ 5-30MHz
Shielding Effectiveness (CoMeT): 93 dB @ 30-862MHz
Return Loss (IEC 169.1.1): -22,5 dB to -13,8 dB
Insertion Loss Max.: -24,9 dB to 0,26 dB
Temperature Range: -40° to +100° C
Insulation Resistance: >200 G?
Inner Conductor Resistance max. @ 1 A DC: 2,7 m?
Max. Tensile Strength: 275 N
Base Material: Brass CuZn39Pb3
Plating: Tin Bronze / Beryllium copper
Dielectric Strength: 2,0 KV

High shielding effectiveness
Low insertion loss
Wide operating temperature range
High insulation resistance
Robust construction with high tensile strength

Suitable for use in various electronic and communication systems
Ideal for applications requiring high-frequency transmission and low signal loss
