LoCo CABLE 144F–aerial/duct cable,12x12F,G657A1,CT-module 12, 2xFRP,dia.11,9mm

Manufacturer: ZTT

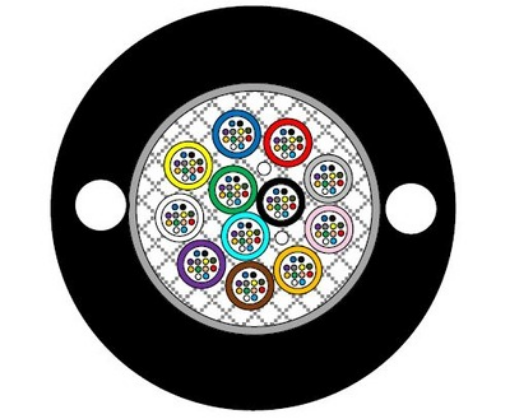

The OFC-144G.657A1-FGSA-S1 is a high-capacity, 144-fiber optical fiber cable (OFC) designed for both duct and aerial installations. It features a central tube with 12 micro modules, each containing 12 optical fibers surrounded by jelly for ease of stripping.
SKU: FTL01ZT0033
Availability: Currently out of Stock

Technical Data:
Fiber Count: 144 fibers
Modules: 12 fibers per module
Outer Diameter: 11.9 mm ± 0.5 mm
Weight: 102 kg/km
Temperature Range: -40 to +70°C (operational)
Standards Compliance: IEC 60793-1, IEC 60793-2, IEC 60794-4-20, EN 50290-2-24
Attenuation: ?0.36 dB/km at 1310 nm; ?0.23 dB/km at 1550 nm
Crush Resistance: 2000N/10cm

G.657A1 UBIF®R10 fiber meeting ITU-T standards for bending loss sensitivity
HDPE outer sheath with embedded FRP for added structural integrity
High tensile and crush resistance for robust performance
Water-blocking yarns to prevent moisture ingress
Black sheath with ink jet markings at 1-meter intervals for easy identification

This cable is ideal for long-haul data transmission in telecom networks, CATV systems, and high-speed data links. Its robust construction makes it suitable for challenging environments and varying weather conditions, ensuring reliable and uninterrupted connectivity.
