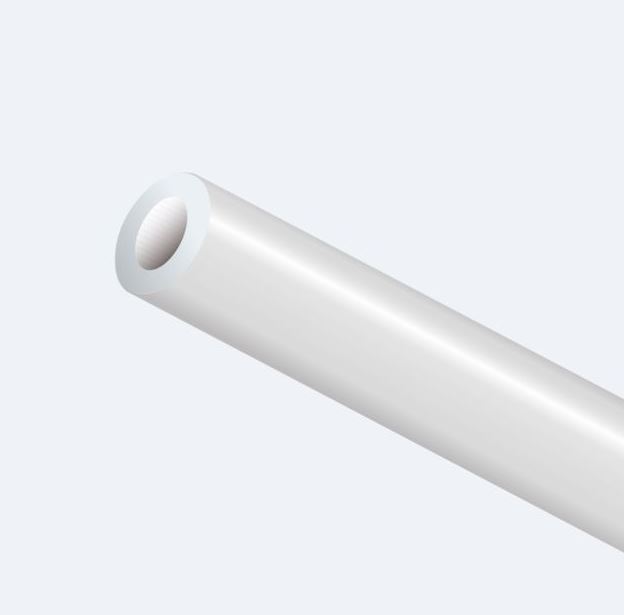

Dura-Line LSHF 5/3.5mm MicroDucts - Indoor, Safe & Durable, White Color

MicroDucts LSHF (Low Smoke Halogen Free) 5/3.5mm are flame retardant conduits ideal for indoor networks, with both smooth and ribbed inner lining options. Designed to minimize health risks and potential damage to electronic equipment due to smoke, toxic fumes, and acidic gas, they are versatile for creating new routes or as a subduct in existing lines.
SKU: FMC15DL0012
Availability: Currently out of Stock
Price for 1 m
Technical Data:
The MicroDucts LSHF 5/3.5mm has a bend radius of 50mm, a wall thickness of 0.75mm, and a size of 5/3.5mm OD/ID. It can withstand storage and usage temperatures from -40 to 70°C, and installation temperatures from -10 to 50°C. They have a burst pressure of 45 bar and a maximum pulling force of 100N. The ducts comply with various European standards, including DIN-EN 13501-1 + A1:2010 and DIN-EN 61034-2.

These MicroDucts are made from Flame Retardant Low Smoke Halogen Free materials, offering very low smoke emissions and absence of halogenated compounds. They have a pressure resistance minimum of 15 bar. With a Silicore, permanently lubricated inner lining, they provide a low inner coefficient of friction for maximum cable blowing length. Their anti-static inner layer reduces friction caused by static electricity build-up during fibre installation. Available in milky white color and in smooth or ribbed inner lining.

MicroDucts LSHF 5/3.5mm is suitable for indoor networks where smoke and toxic fumes could pose a health risk and cause potential damage to electronic equipment. It is ideal for creating new routes and also as a subduct in existing lines.
