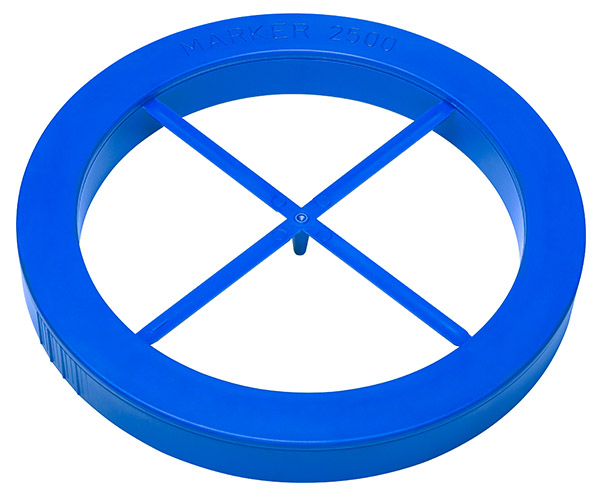

Marker 2500 Analog Underground Marker For Water Pipelines - Freq. 145,7kHz

Manufacturer: Komplex
The Marker 2500 is an expertly designed underground analog marker, exclusively developed for water pipelines, operating at a frequency of 145.7 kHz.
SKU: FMC03KX0017
Availability: Currently out of Stock
Technical Data:
Working frequency: 145.7 kHz
Casing material: High Density PS
Dimensions: Diameter 225 mm x Height 28 mm
Weight: Max. 300 g (0.66 lb)
Reading range: Up to 1.8 m (5.9 ft)
Working temperature: –20 °C to +60 °C
Life time: 50 years

The Marker 2500 Analog is housed in a resilient High Density PS casing, ensuring a lifespan of 50 years in harsh underground conditions. It provides a reading range of up to 1.8 meters and maintains optimum performance in temperatures from –20 °C to +60 °C. Despite lacking an ID serial number, it reliably facilitates the tracking and identification of water pipelines.

Specifically designed for the water industry, the Marker 2500 Analog is used to mark and identify the location of underground water pipelines. It is crucial in maintenance, repair, and future infrastructure expansion projects, preventing accidental damage during excavation and contributing to efficient network management.
