Technical Data:
Fiber Type: ITU-T G.657A1
Fiber Count: 144
Outer Diameter: 7.8 mm (± 0.3)
Weight: 58 kg (± 20%)
Temperature Range: -20 to +60°C (Operation)
Max. Tensile Load (Installation): 1500 N
Crush Resistance: 700 N per 10 cm
Bending Radius: 20x cable O (Installation), 15x cable O (Operation)
Features:

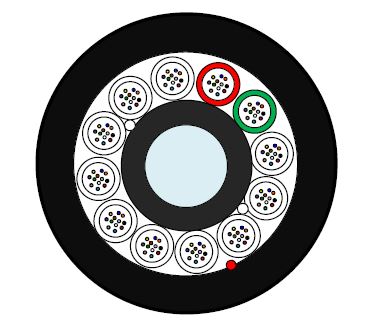

Stranded loose tubes containing 12 optical fibers each, filled with thixotropic gel.
Durable HDPE outer sheath with integrated ripcord.
Central strength member made of FRP.
Designed for low fiber attenuation and excellent bending performance.
Fiber colors and tube colors for easy identification.
Application:
Ideal for telecommunications operators and network providers, the GYCFHTY-144 G.657A1 micro cable is suitable for long-distance and local area network installations, as well as for connecting buildings and deploying in harsh environments. Its robust design ensures reliable performance in a variety of climatic conditions.
