MICRO CABLE 96F – micro cable,8x12F,G652D,LT,central FRP,diameter 6,1mm

Manufacturer: ZTT
The GYCFHTY-96 G.652D is a high-quality micro cable optimized for blowing into microducts, featuring 96 optical fibers for efficient data transmission.
SKU: FTL01ZT0024
Availability: Currently out of Stock

Technical Data:
Fiber Type: ITU-T G.652D ZTT-ALF®

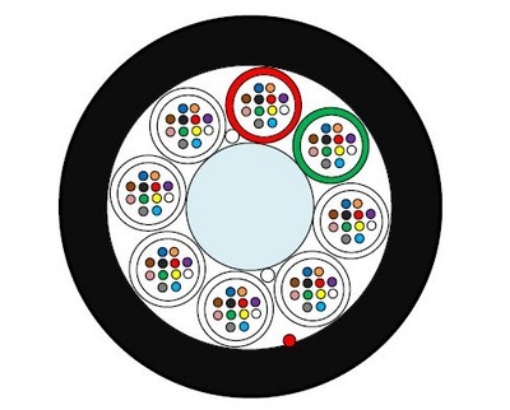

Fiber Count: 96 fibers within 8 loose tubes
Attenuation: ?0.38 dB/km @ 1310 nm, ?0.23 dB/km @ 1550 nm
Operating Temperature Range: -20 to +60°C
Max. Tensile Load (Installation): 1500 N
Crush Resistance: 700 N per 10 cm
Outer Diameter: 6.1 mm (±0.2)
Cable Weight: 39 kg (± 20%)

Enhanced durability with a central strength member made of fiber reinforced plastic (FRP) and HDPE outer sheath.
Low attenuation rates ensure minimal signal loss.
Wide operating temperature range for diverse environmental conditions.
Compliant with multiple industry standards including IEC 60793-1, IEC 60793-2, IEC 60794-5, IEC 60793-1-52.

Ideal for telecommunications companies and network providers looking for reliable fiber optic infrastructure, this micro cable is suitable for long-distance and high-capacity data transmission, perfect for expanding or upgrading network systems.
