Technical Data:
- Bandwidth: Up to 1.2 GHz
- Tap Loss: 17dB
- Insertion Loss (Max): 1.0 dB to 5.5 dB (depending on frequency range)
- Nominal Impedance: 75 Ohms
- Power Passing: 12A, 90V AC
- Surge Withstand: Conforms to ANSI/SCTE 81 2012, IEEE C62.41 Cat. B3 and A3 Waveform
- Operating Temperature: -40°C to +60°C
- RFI Shielding: 100 dB
- Weatherproofing: 15 psi waterproof condition
Features:
- Patented DSM Seizure Technology: Ensures increased spring retention, better surface contact, and enhanced electrical performance.
- Durable Construction: Aluminum alloy housing with weather-resistant powder coating and stainless steel hardware.
- Weatherproof Design: Equipped with a weather seal gasket and heat shrink ridges for easy installation and reliable outdoor performance.
- High Voltage Blocking: All ports are equipped with high voltage blocking capacitors.
- Color-Coded Tap Values: For quick and easy identification.
- Self-Sealing 'F' Ports: Prevents moisture ingress and maintains connection integrity even when the subscriber is disconnected.
Application:

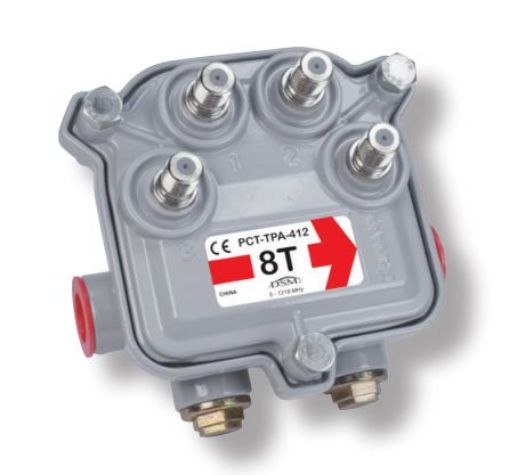

The PCT Outdoor Tap, 4-way, 17dB, is ideal for use in outdoor multimedia distribution systems, particularly in environments requiring robust and reliable performance. It is perfect for cable TV and broadband internet services, ensuring high-quality signal transmission and minimal interference.
