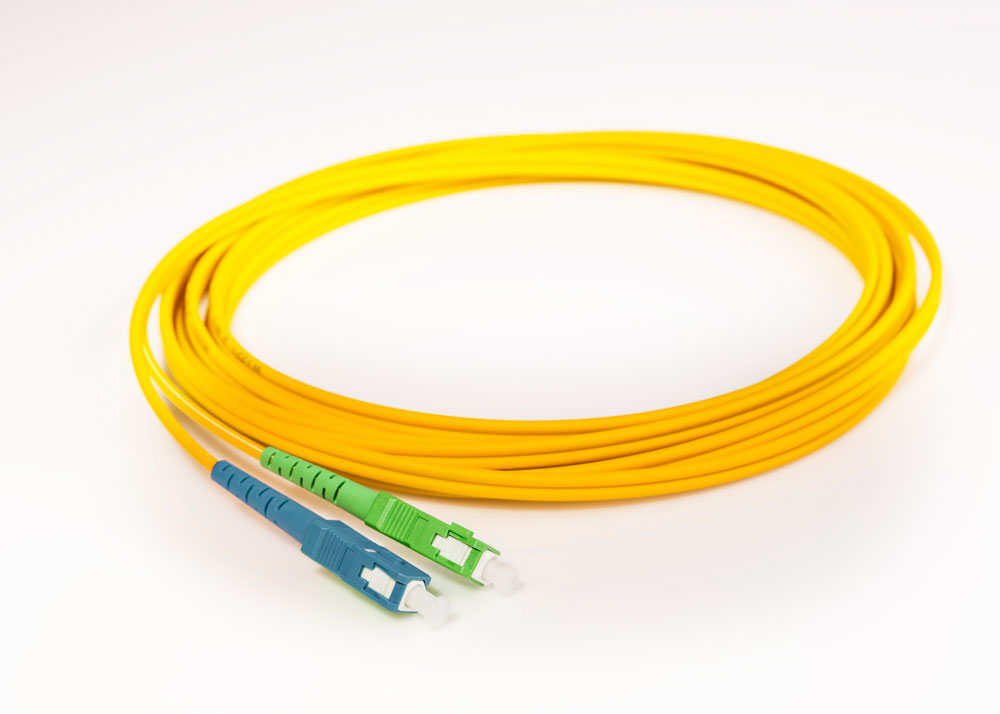

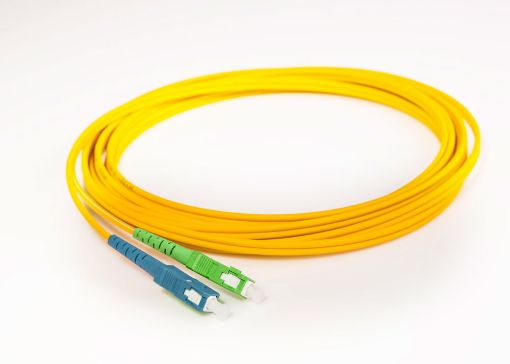

Patchcord 2,0mm simplex 9/125 SC APC-SC PC 3m yellow

Technical Data:

• Code: PTCH20-M-9-SCASC-03-YL
• Fiber Count: 1
• Fiber Type: G.652 D Single-mode
• Connectors: SC/APC to SC/PC
• Diameter: 2.0mm
• Length: 3 meters
• Core/Jacket Diameter: 9/125 micrometers
• Tube Diameter: 0.9mm
• Operating Temperature: -20°C to +60°C
• Storage Temperature: -40°C to +90°C
• Flammability Rating: UL 94 V-0

Features:

• Single-fiber connectivity with a polished flat PC and an 8-degree angled APC connector for optimal signal transmission.
• Superior return loss of >60 dB for APC and >50 dB for PC, ensuring strong signal reflection and low insertion loss of <0.3 dB.
• Manufactured from high-quality materials for low attenuation and excellent transmission parameters.
• Easy fiber identification and customization available in various fiber standards.

Application:
Ideal for internal use as a connection cable within fiber optic network infrastructures. Not UV resistant and suitable for a wide range of temperatures.
