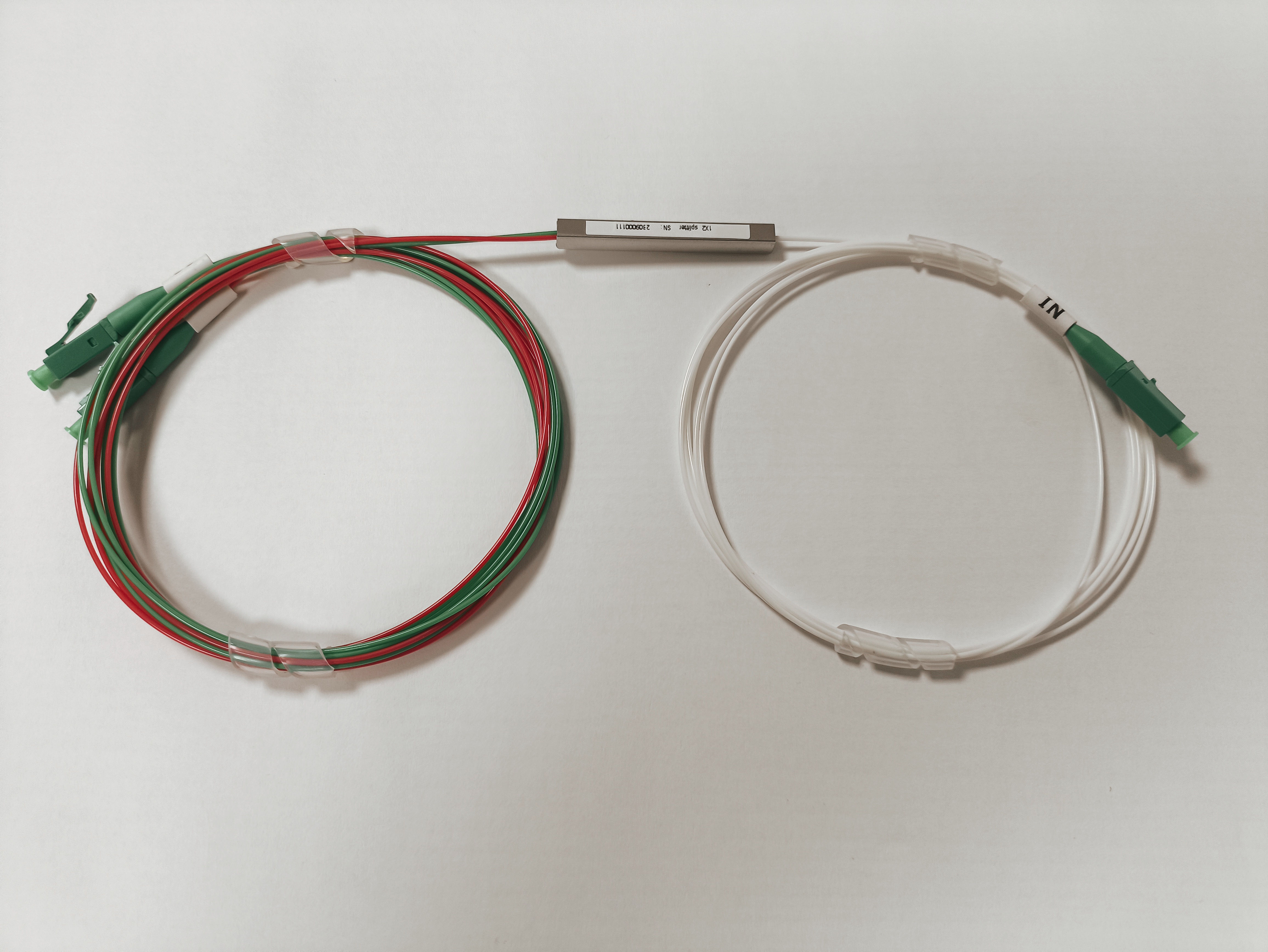

PLC Splitter 1:2 LC/APC – pigtail 1,5m, LC/APC,OD:0.9±0.08mm,G657A1

Manufacturer: ZTT
The ZTT Optical Mini Module PLC Splitter is a compact device designed for effectively splitting a single optical input signal into two separate output signals, utilizing high-quality G657A1 fiber with a 1.5m LC/APC pigtail.
SKU: FTL01ZT0039
Availability: In stock
Warehouse: EU Warehouse
Technical Data:
Configuration: 1:2 Splitter
Connector Type: LC/APC
Fiber Type: G657A1
Pigtail Length: 1.5 meters
Outer Diameter (OD): 0.9±0.08mm
Operating Wavelength: 1260-1650nm
Compliance: Telecordia GR-1209 and GR-1221

Small form factor with an aesthetically pleasing design
Available in various color options for easy identification
Ensures reliable performance and stability with quick installation
Wide operating wavelength range suitable for versatile applications
Excellent uniformity, particularly advantageous for PON (Passive Optical Network) systems
RoHS2.0 compliant

The PLC Splitter can be used within optical cross-connect cabinets and splitting boxes, providing an efficient solution for distributing optical signals in telecommunications networks, local area networks (LAN), and cable TV networks. It is particularly well-suited for applications where a single optical signal needs to be distributed into two pathways.
