PLC Splitter 1:8 without connector – input port pigtail length 1.5m,output port

Manufacturer: ZTT

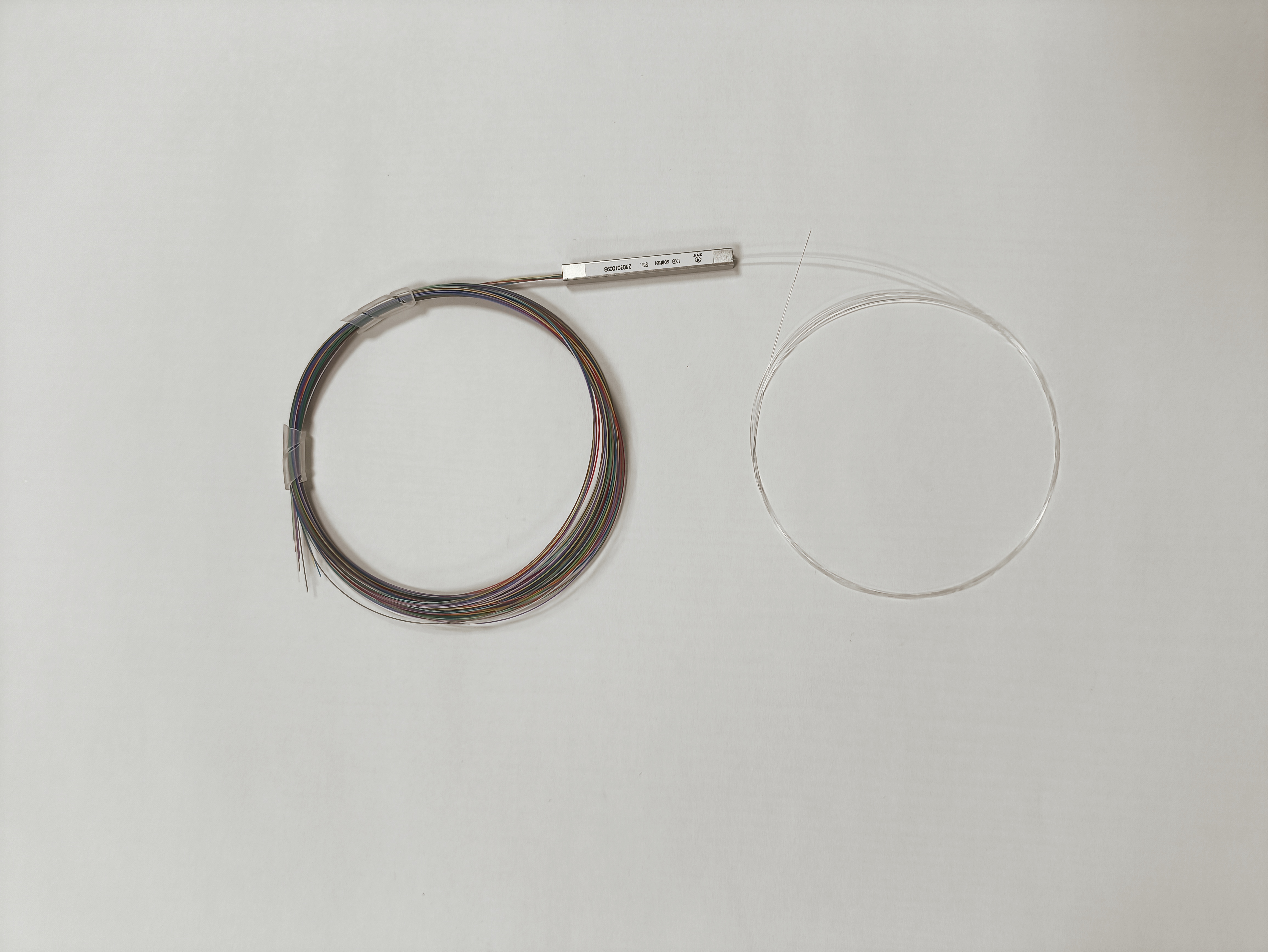

The Optical Mini Module PLC Splitter 1:8 is a compact fiber optic device designed to evenly split an optical signal into eight outputs without connectors, featuring a 1.5m input port pigtail length.
SKU: FTL01ZT0043
Availability: In stock
Warehouse: EU Warehouse
Technical Data:
Input port: No connector, with a pigtail length of 1.5m
Output port: 8 outputs, without connectors
Fiber type: G.657A1
Operating Wavelength: 1260-1650 nm
Insertion Loss: ?10.5 dB
Operating Temperature: -40 to +85°C

High uniformity for equal signal distribution
Wide operating wavelength range for versatility
Compliant with Telecordia GR-1209 and GR-1221 standards
RoHS2.0 compliant for environmental safety
Small form factor for easy integration

Ideal for deployment in optical cross-connect cabinets and splitting boxes, the PLC Splitter 1:8 is suitable for network distribution where no end connectors are required, especially in passive optical networks (PON).
