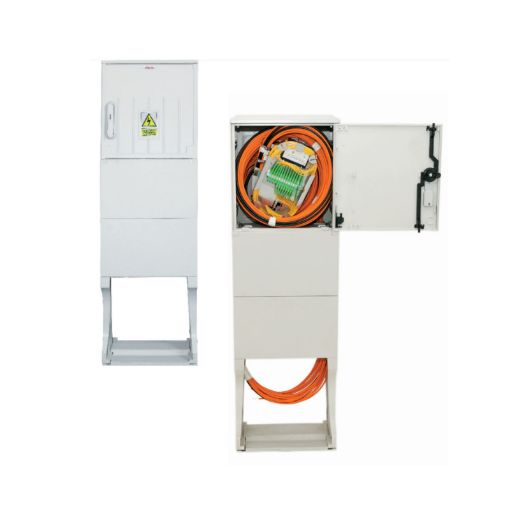

SATURN 24HP + 2L outdoor distribution cabinet

Technical Data:

• Color: Gray
• Weight: 9 kg
• Subscriber Cable Diameter: Up to 7mm
• Bus Cable Diameter: Up to 12mm
• Number of Subscriber-Side Distribution Plates: 24
• Number of Line-Side Distribution Plates: 4 + 6
• Max. Number of Splitters (ABS Housing): 2
• Max. Number of Splitters (Metal Box Housing): 4
• Max. Number of Neptun 24J Splice Trays: 4
• Max. Cable Slack in Cable Pocket: 100m
• Connector Standard: SC
• Mid-Span Splicing: Yes
• Max. Number of Line Cables After Expansion: 4
• Max. Number of Splices After Expansion: 96

Features:

• Versatile use in FTTH networks and underground fiber optic networks
• Large slack for line and subscriber cables
• Removable insert for splicing up to 5m from the post
• Housing made of thermosetting polyester reinforced with glass fiber
• Online customer splicing capability
• Galvanized insert with extension possibility to increase input fibers

Application:
This distribution cabinet serves as the main distribution point in outdoor FTTH network setups, offering a streamlined solution for managing and distributing fiber optic cables in the field.

Equipment Included:

• 2 x splice trays for 48 splices
• Saturn insert
• Durable housing constructed from thermosetting polyester with fiberglass reinforcement
• 13x SC APC DX adapters
• 26x SC APC pigtails on 0.9mm cable
• 2x rubber cable gland
• Cable ties
• Necessary bolts and mounting tapes
• System lock with key
