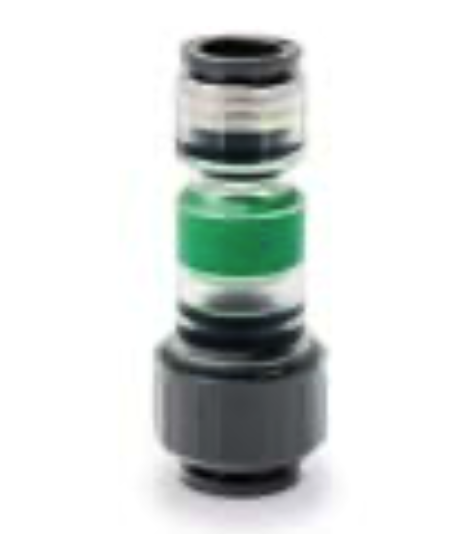

V4590 7-3/5 - microduct dia. 7mm, Cable dia. 3,0-5,0mm, seal colour red

Manufacturer: Camozzi
The V4590 7-3/5 model is a robust in-line gas and fluid block connector designed for securing and sealing microducts and cables in telecommunications applications.
SKU: FTL13CZ0027
Availability: Currently out of Stock

Technical Data:

  • Microduct Diameter: 7mm
  • Cable Diameter Range: 3.0-5.0mm
  • Seal Color: Red
  • Materials: Body made of polyamide, cartridge of nickel-plated brass, collet of polyacetal, seal of NBR, lock claw of stainless steel, compression nut of polyacetal, and cable seal of silicon.
  • Dimensions: Length when open 67mm, Length when closed 64mm
  • Operating Pressure: up to 20 bar
  • Operating Temperature: -20 to +50 degrees Celsius


  • Direct Buried (DB) use capability
  • Transparent housing for visual inspection
  • IP 68 rated for ingress protection
  • Complies with CEI EN 50411-2-8 standard
  • Easy and quick installation process
  • Durable construction for long-term reliability

The V4590 7-3/5 in-line connector is specially used at transition points in buildings where gas or water pipes are present, providing a secure and watertight connection for fiber optic and other telecommunication cables within the specified diameter range.
