Technical Data:

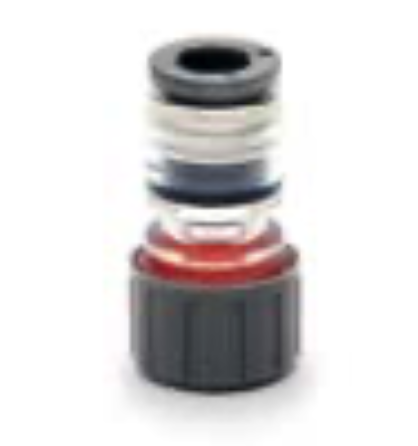

- Model: V4790 12/3-6
- Microduct Diameter: 12mm
- Cable Diameter Compatibility: 3 - 6mm
- Seal Color: Red
- Dimensions (Closed): Length 42.2mm, External Diameter 22mm
- Weight: 17g
- Packaging: 25 pieces per package
Features:
- Constructed with a durable polyamide body and nickel-plated brass cartridge
- Polyacetal collet and compression nut for robust connection
- NBR seal and silicon cable seal for airtight and watertight integrity
- Stainless steel lock claw ensures a secure grip on the cable
- Designed for direct buried (DB) applications with an IP 68 rating
- Capable of withstanding operating pressures up to 20 bar
- Suitable for temperatures ranging from -20 to +50 degrees Celsius
Application:
The V4790 12/3-6 end-line model is specifically utilized at transition points in buildings where gas or water pipes are present, providing a secure and reliable seal for microduct and cable installations in such environments.
