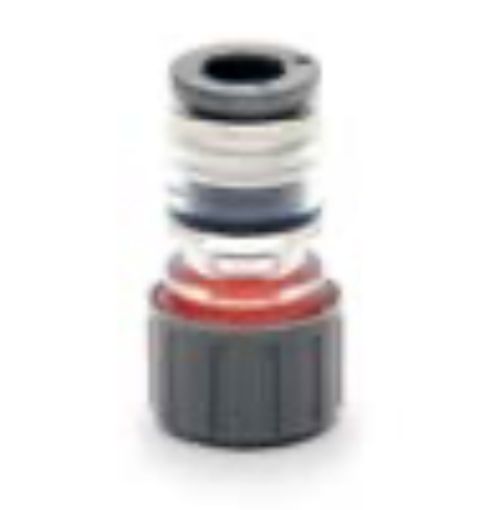

V4790 7/0,5-3 - microduct dia. 7mm, Cable dia. 0.5 - 3mm, seal colour blue

Technical Data:

• Model: V4790 7/0,5-3
• Microduct Diameter: 7mm
• Cable Diameter Compatibility: 0.5 - 3mm
• Seal Color: Blue
• Operating Pressure: 20 bar
• Temperature Range: -20 to +50 degrees Celsius
• Dimensions (open): 35.6mm (length)
• Dimensions (closed): 33.1mm (length)
• Weight: 7.7g

Features:

• Made with durable polyamide body and nickel-plated brass cartridge
• Polyacetal collet and compression nut for a secure fit
• Features a silicon cable seal for superior sealing
• Stainless steel lock claw ensures long-term reliability
• The transparent housing allows for visual inspection
• Complies with CEI EN 50411-2-8 standard
• Designed for direct buried (DB) use and rated IP 68 for ingress protection

Application:
The V4790 7/0,5-3 gas and fluid block connector is primarily used as an end-line solution at transition points within buildings where gas or water pipes are present, ensuring a watertight and gastight seal for telecommunications cables.
